Ice Cream Cone Sleeve Forming Machine

FP-1500
Cone Size & Angle Min.100mm, Max.255mm, 15˚~28˚
Production Speed Max.250pcs/Min
Material General paper, AL Foil Paper, Dry Wax Paper(80~120g/㎡)
Sealing Method Nozzle Hot Melt Sealing
Control System Touch Screen Panel / PLC / Inverter / Sensor / Vacuum
Electrical Requirement Approx.11Kw
Compressed Air Approx. 300L/Min, 6HP
Dimension 1850x1700x1800
Weight 1200Kg

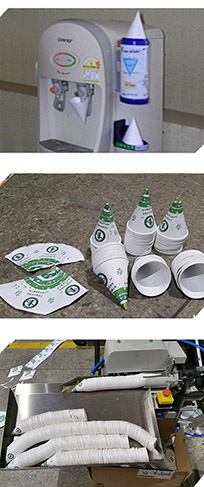

Water Paper Cone Sleeve Forming Machine

FP-1700
Cone Size & Angle Min.70mm, Max.145mm, 38.5˚~40˚
Production Speed Max.180pcs/Min
Material General Paper, PE Coated Paper(80~120g/㎡)
Sealing Method Nozzle Hot Melt Sealing
Control System Touch Screen Panel / PLC / Inverter / Sensor / Vacuum
Electrical Requirement Approx.11Kw
Compressed Air Approx.300L/Min, 6HP
Dimension 4000x1650x1800
Weight 2000Kg
